PTFE Flange Shield   [ Back ]

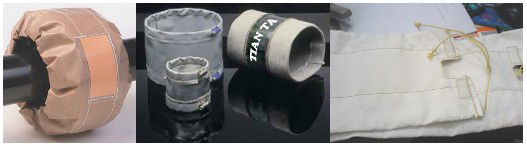

Safety Spray Shields are used to prevent injury to personnel or damage to equipment in the event of a leak or spray-out of acids, caustics, chlorine and other dangerous liquids at piping connections (such as flanges, valves, or expansion joints) found in chemical, pulp/paper, petrochemical and wastewater treatment plants. These Safety Shields are commonly referred to as flange guards, flange covers, flange diapers or flange protectors. Our Safety Spray Shields are constructed from 100%PTFE Fabric ,PTFE Coated Fiberglass Fabric, PTFE Coated Kev special Fabric, polypropylene Coated Silicone Fabric, PVC Coated Silicone Fabric, polyethylene Coated Silicone Fabric and are used for preventing spray-out of hazardous chemicals due to gasket or packing failure on flanges, valves and expansion joints.

Our plastic cloth shields are manufactured from single and multilayered clear cloth for easy visibility or a colored cloth with a leak indicating patch. Weep holes located behind the sensitive pH indicating patch allow the indicator to immediately signal a leak and change color to red in the presence of an acid or green if an alkali. The pH patch is also replaceable which allows reuse of the shield. APS shields are UV stabilized and resistant to sun, rain, and fumes and may be used indoors or outdoors. Our cloth shields are quickly and easily installed by one person without any tools by means of a Velcro fastener and drawstrings which are standard.
 •Cloth shields available in five different materials and eight various styles.
 •Can be customized for any and all special requirements or applications.
 •Available for all standard ∮50mm ~ ∮300mm flanges Shields.
 •PTFE coated glass cloth.
 •PTFE Coated Kev special Fabric.
 •PTFE thread and drawstring.
 •Maximum operating temperature to 260°C / 500F.
 •Fire and tear resistant.
 •Three styles available in standard, single-ply, and clear PTFE.
 •Standard color is brown.
 •Broad Spectrum of chemical resistance.

 •Our most popular and best selling shield.
 •3-ply multilayered reinforced construction.
 •Laboratory test proven.

Single ply
 •Similar in design to standard PTFE shield.
 •Same quality construction except single-layered for less severe applications.

Clear PTFE
 •Similar in design to standard PTFE shields.
 •100% clear PTFE strip in center of shield allows for visual inspection.

Polypropylene Coated Silicone Fabric
 •100% black polypropylene Coated Silicone cloth, thread, and drawstring.
 •Polypropylene stiffener lines the interior for added protection.
 •Maximum operating temperature 250°F.

Polyvinyl Chloride (PVC) Coated Silicone Fabric
 •Manufactured from yellow, reinforced polyvinyl chloride.
 •Reinforced thread and drawstring.
 •Maximum operating temperature 200°F.

Polyethylene Coated Silicone Fabric
 •Manufactured from transparent, reinforced Polyethylene Coated Silicone Fabric.
 •Reinforced thread and drawstring.
 •Maximum operating temperature 200°F.

 •Available in same cloth and metal materials as other shields.
 •Manufactured to fit all types of valves:
 - Butterfly, Globe, Check, Diaphragm, Gate, Ball, Plug.

 •Manufactured from single, clear, and standard multilayered PTFE only.
 •Same quality design as other cloth shields.
 •pH indicating patch to signal leaks.
 •Weep holes behind patch allow indicator to change color.
 •Attached by Velcro fasteners and drawstrings.
 •Allows for movement of the expansion joint without any change in effectiveness.
 •Available for all brands and styles of expansion joints.
 "Recommended by most manufactures of PTFE lined expansion joints."

 •Designed to cover the pipe vent outlet on safety relief valves and rupture discs.
 •Manufactured from heavy duty polyvinyl chloride (PVC).
 •Weatherproof: prevents rainwater and snow from entering.
 •Keeps out birds and insects.
 •UV stabilized and chemical resistant.
 •Simple and easy to install.
 •Contains drawstring for securing.
 •Contains grommet with rope attached to prevent loss.
 •Available for all pipe sizes.
 •Available in angle or straight cut.

*PTFE Fabrics are also known as Kev special Fabrics. Kev special is a registered Trade mark of DUP
